Porsche has positioned itself as the first automotive manufacturer to offer wireless charging technology for production vehicles, introducing an 11 kW inductive charging system as an optional feature for the upcoming Cayenne Electric. The system eliminates charging cables and manual connection requirements through a two-component architecture consisting of a garage-mounted floor plate and an underbody receiver unit.
Highlights
- 11 kW wireless power transfer achieves over 90% efficiency with 12-18 cm air gap between floor plate and vehicle receiver
- Single-component floor plate measures 117 cm × 78 cm × 6 cm, eliminating need for separate wallbox infrastructure
- 10 cm positioning tolerance enabled by 85 kHz operating frequency and dynamic software parameter adjustment
- Integrated safety systems include foreign-object detection for metallic items and live-object detection for pets and people
System Architecture and Components

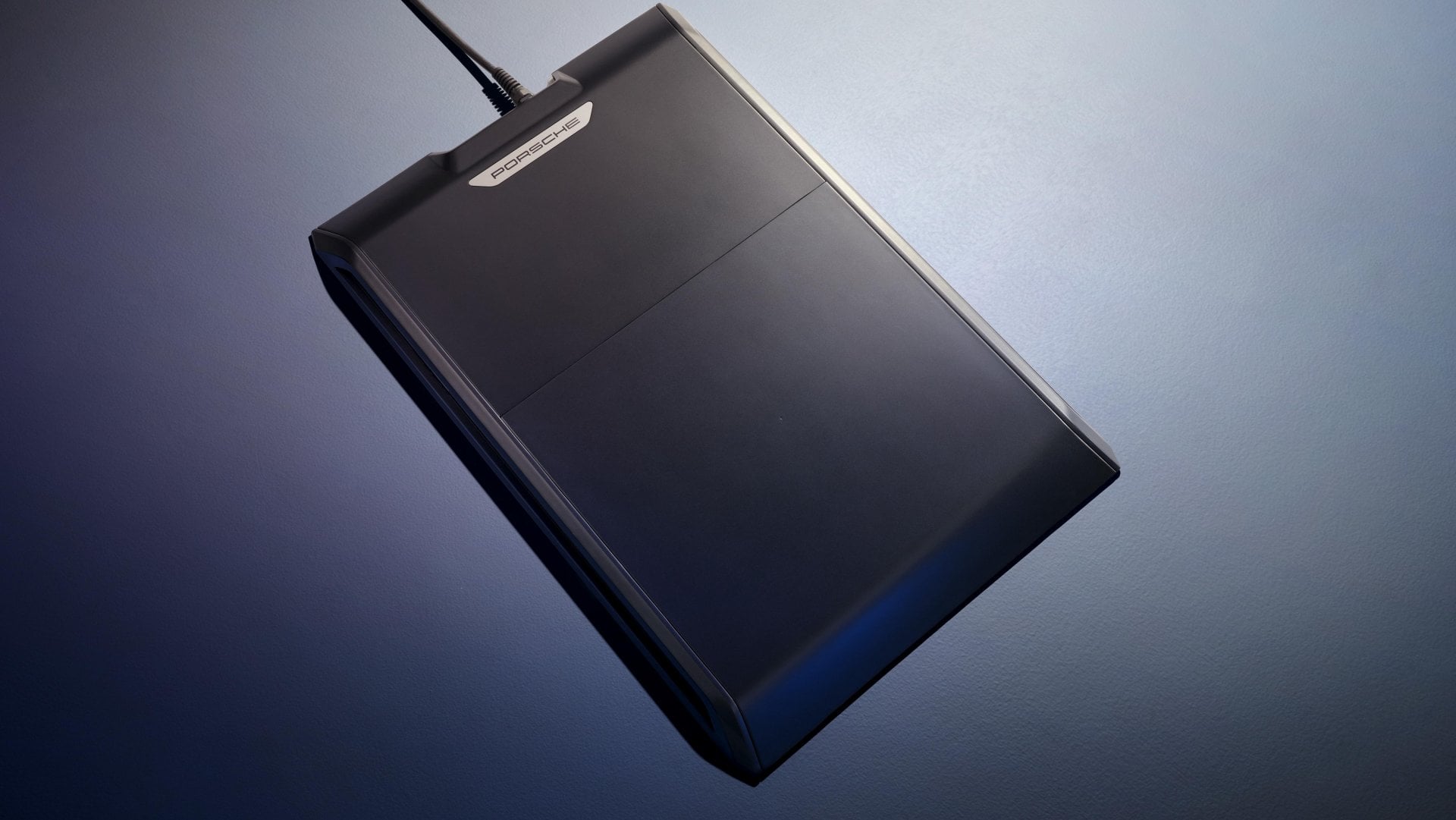

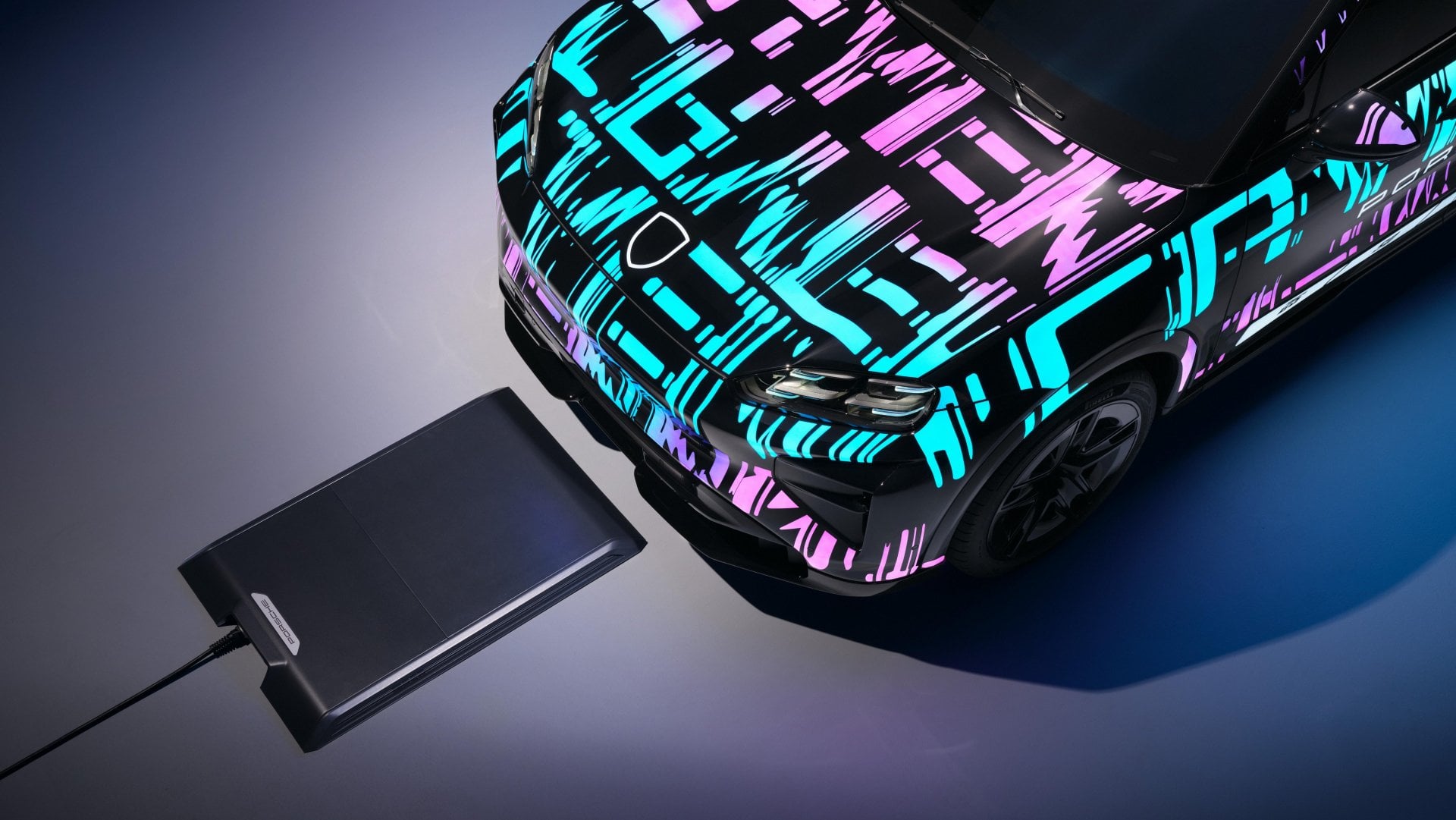

The wireless charging infrastructure comprises two primary elements. The floor plate, installed in the garage or parking space, contains the transmission coil, power electronics, and Wi-Fi communication module. The receiver unit mounts behind the Cayenne Electric’s front axle, integrated into the underbody paneling for protection and aesthetic concealment.
Christian Holler, head of charging systems at Porsche, confirms the manufacturer’s exclusive market position: “Porsche is currently the only car manufacturer in the world that is going to offer contactless charging, with an innovative 11 kW one-box system.”
Installation and Initial Configuration
Floor plate installation requires only connection to the electrical supply, according to product manager Simon Schulze. Previous wireless charging solutions necessitated additional wallbox components, adding complexity and installation costs.
Initial system pairing follows smartphone-style authentication protocols. The vehicle and floor plate exchange encrypted data, including password credentials, through the integrated Wi-Fi module. This one-time initialization process prevents unauthorized electricity access and ensures secure communication between components.
Positioning Technology and User Interface
The Cayenne’s Porsche Communication Management (PCM) system provides real-time positioning feedback through the Surround View parking function. A green dot indicates the receiver location around the front axle, while a green circle represents the floor plate’s transmission coil.
Development engineer Simon Klein explains the positioning mechanism: “For positioning, we use technology from the Keyless Go system, which is used for keyless vehicle unlocking.” The system employs two vehicle-mounted sensors that correspond to four units embedded in the floor plate.
Vehicle positioning tolerance extends to 10 centimeters of misalignment between the floor plate and receiver module. Software algorithms continuously monitor alignment and adjust charging parameters to maintain optimal power transfer efficiency.
Inductive Coupling Technical Specifications
The charging system operates on established inductive coupling principles, utilizing two copper wire coils positioned opposite each other. When electric current flows through the transmission coil, it generates a magnetic field that induces voltage in the receiving coil.
Power Conversion Process
Porsche engineers implemented a multi-stage power conversion architecture to achieve efficient high-power wireless transfer:
- Stage 1: AC grid voltage converts to DC voltage in the floor plate
- Stage 2: DC voltage converts to 85 kHz AC voltage at 2,000 V in the oscillating circuit
- Operating frequency: 85 kHz (85,000 Hz), significantly higher than standard 50-60 Hz grid frequencies
Development engineer Dominik Scherer notes the frequency selection rationale: “This approach ensures that enough energy is transmitted even if the transmitter and receiver coils are not positioned perfectly in line with one another.”
The elevated operating frequency of 85 kHz, compared to standard grid frequencies of 50 Hz (Europe) or 60 Hz (USA), enables efficient power transfer despite positioning variations and the 12-18 cm air gap required by the Cayenne Electric’s ground clearance.
Performance Metrics and Charging Capabilities
The system delivers 11 kilowatts of wireless power transfer with over 90% efficiency. Charging activation occurs automatically when the driver engages the parking brake. Power delivery and charging duration match conventional wallbox performance with cable connections.
The 12-18 cm gap between the floor plate and receiver unit accommodates the Cayenne Electric’s standard ground clearance while maintaining high efficiency through optimized coil design and high-frequency operation.
Safety Systems and Electromagnetic Compatibility
Porsche integrated multiple safety mechanisms to address potential hazards associated with high-power inductive charging:
Magnetic Field Management:
- Shielding plate embedded beneath receiver prevents upward magnetic field propagation
- Ferrite materials above and below coils ensure targeted magnetic flux guidance
- All electromagnetic emissions remain below regulatory EMC limits
Object Detection Systems:
- Foreign-object detection identifies metallic items such as keys or tools
- Live-object detection employs motion sensors to detect pets or human presence
- Both systems provide driver warnings and automatic charging cessation
Product manager Simon Schulze addresses heating concerns: “A metal part would heat up, just like on an induction stove. Our security precautions make sure that doesn’t happen.”
Future Development Direction
Porsche is developing integration between wireless charging and autonomous parking functionality. The planned system would enable drivers to exit the vehicle in front of the garage, initiate automatic parking via button press, and allow the Cayenne to position itself over the charging plate and begin power transfer autonomously.
